Case Construction 865B

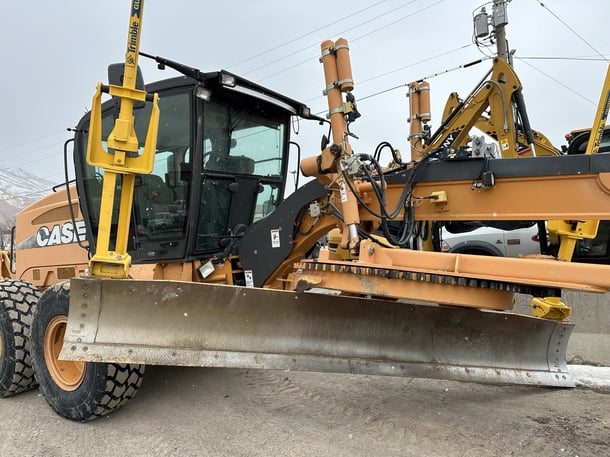

The CASE 865B VHP is a heavy-duty Tier 3 certified motor grader built for demanding road construction, site preparation, and municipal maintenance. Powered by a 6.7 L FPT inline-six turbocharged diesel rated at 220 hp gross, its Variable Horsepower (VHP) system automatically delivers 178 to 205 net hp across the gear range so output matches the job. An electronically controlled 8-speed forward / 4-speed reverse powershift transmission, load-sensing hydraulics, and a 360-degree rotating circle with 25-degree frame articulation give operators precise, productive blade control. With a 13 ft moldboard (12 ft and 14 ft optional) and a 35,993 lb operating weight, the 865B handles everything from fine finish grading to heavy bank cutting.

Get a Quote

Case Construction 865B Specifications

Power & Engine

Horsepower (Gross)

220 HP

Engine

FPT F4HE9687C 6.7L Inline-6 Turbocharged Diesel, Tier 3

Physical Dimensions & Weight

Overall Width

97 in

Length

28 ft 0 in

Classification & Options

Specialty

Moldboard 13 ft x 23.7 in (12/14 ft optional); 6x4 Drive; Powershift Transmission 8F/4R; VHP Variable Horsepower 178-205 net hp; Load-Sensing Hydraulics; 360 Degree Circle Rotation; 25 Degree Articulation

Equipment Type

Motor Graders

Application

Highway construction, commercial grading, large site prep, municipal road work, snow removal
