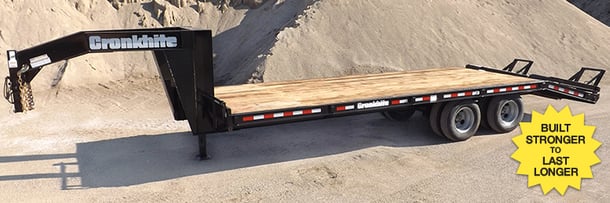

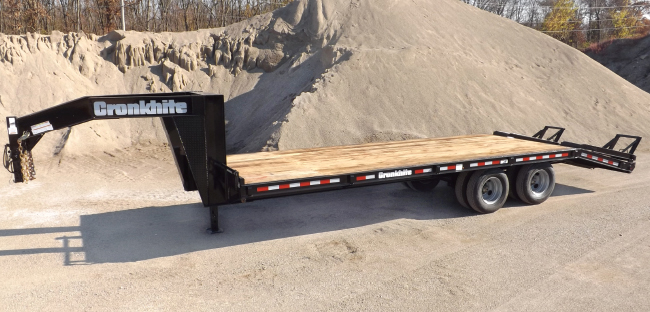

Cronkhite 9000 Series

The Cronkhite 9000 Series is a heavy-duty gooseneck deck-over equipment trailer built for hauling excavators, bulldozers, pavers, crawlers, and other large equipment. Available in three axle configurations - the 9000 (18,000 lb), 9100 (20,000 lb), and 9200 (24,000 lb) - the series covers a broad range of hauling needs with GVWR ratings from 23,000 to 29,800 lbs. The frame is constructed from 10"-12" wide-flange I-beam steel, topped with a 2" solid white oak hardwood deck. Standard deck measures 96" wide by 20' long with optional extensions to 102" wide and 24' long. Features include Dexter heavy-duty axles with EZ-lube hubs, spring-assist ladder-style loading ramps, a 10,000 lb drop-leg jack, 10+ tie-downs, and an LED wiring system encased in steel conduit. Made in the USA by Cronkhite Industries since 1970.

Get a Quote

Cronkhite 9000 Series Specifications

Physical Dimensions & Weight

Overall Width

96 in (expandable to 102 in)

Length

20 ft + 5 ft beavertail (22 or 24 ft optional)

Operational Performance

Rated Operating Capacity

18,000 - 24,000 lb

Classification & Options

Specialty

Gooseneck deck-over; dual tandem axles (9000/9100) or triple axle (9200); 2-in solid white oak hardwood deck; 10+ tie-downs; spring-assist ladder ramps; GVWR 23,000-29,800 lb

Equipment Type

Trailers

Application

Excavators, bulldozers, pavers, crawlers, and heavy construction equipment
