Curbtender Hammerpak

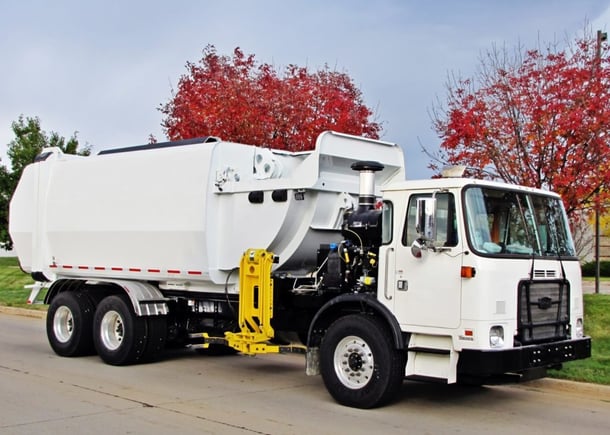

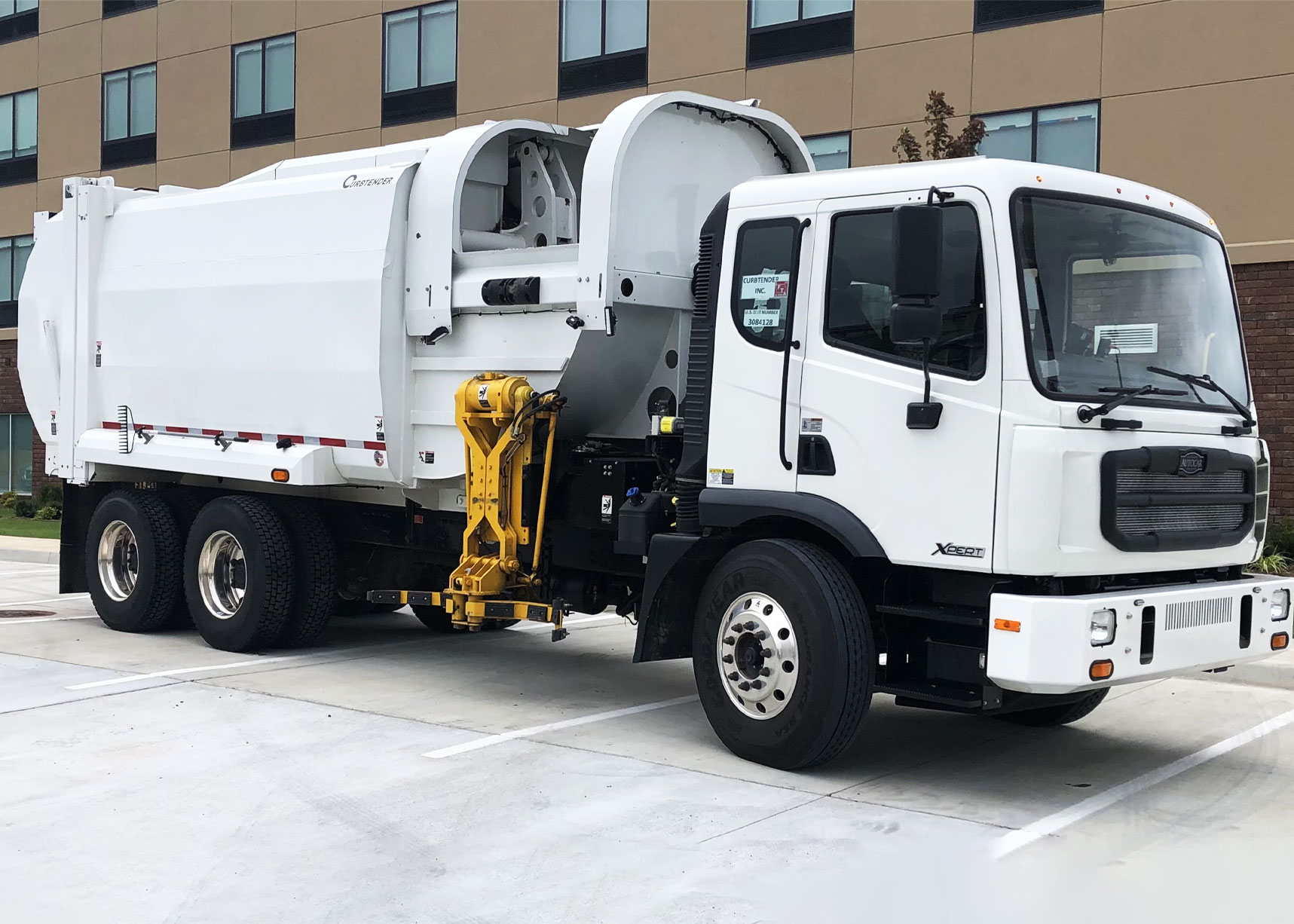

The Curbtender Hammerpak is a lightweight automated side loader built around a patented packing mechanism that pivots inside a curved hopper like the swing of a hammer, making a clean sweep with every stroke and eliminating the need for a hopper clean-out door. Standard equipment includes the 12-foot XtenderArm - one of the most robust extended-reach arms available - while the optional Power Arm delivers up to 850 lb lift capacity backed by a 5-year structural warranty. Tip-To-Dump ejection keeps cycle times tight, and the single roof-mounted hydraulic packing cylinder means roughly 25% fewer hydraulic components than conventional ASLs, reducing maintenance demands and downtime. A patented HAZMAT-curtailment channel system captures any hydraulic drips, protecting crews and roadways. Designed from the ground up for both conventional diesel and all-electric chassis, the Hammerpak pairs durability with lower lifecycle cost for high-frequency residential collection routes.

Get a Quote

Curbtender Hammerpak Specifications

Operational Performance

Rated Operating Capacity

24 yd3

Lift Capacity

850 lb (Power Arm option)

Arm Reach

12 ft (XtenderArm standard; Power Arm optional)

Classification & Options

Specialty

Patented Hammer packing mechanism; Tip-To-Dump ejection; HAZMAT-curtailment hydraulic channel system; ~25% fewer hydraulic components vs. standard ASL

Equipment Type

Auto Side Loaders

Application

Residential automated curbside refuse collection; compatible with diesel and all-electric chassis
