Felling Hydraulic Tails

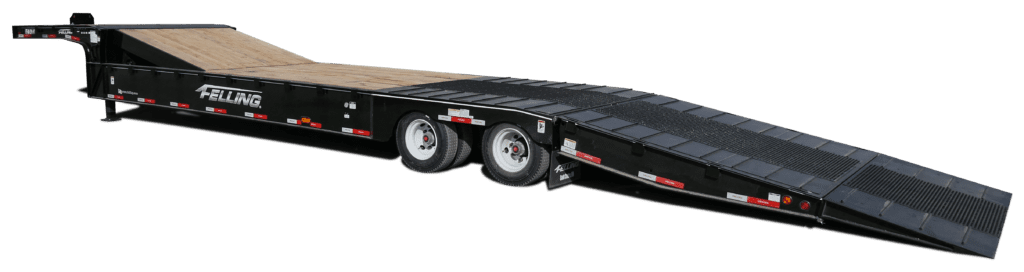

The Felling Hydraulic Tail Perimeter Frame trailer is purpose-built for the commercial transport, construction, and rental industries, combining a low-profile drop-deck design with a hydraulic folding tail for effortless loading of low-clearance equipment. The 8'6" hydraulic tail with 4' fold-under provides a six-degree break-over angle at the main deck end, enabling smooth loading of rollers, scissor lifts, aerial work platforms, and similar machines. Available in 35-, 40-, and 50-ton capacities (70,000-100,000 lbs distributed load), PL models feature a 35" main deck height while PH models ride at 41", both with a 90° gooseneck neck and 59" upper deck. The hydraulic tail allows dock loading up to 60" high, making these trailers exceptional for urban construction and equipment rental operations.

Get a Quote

Felling Hydraulic Tails Specifications

Operational Performance

Rated Operating Capacity

70,000-100,000 lb (35-50 ton)

Classification & Options

Specialty

8'6" hydraulic folding tail with 4' fold-under; PL deck height 35", PH deck height 41"; dock loading up to 60"; 6° break-over angle; GVWR up to 114,700 lb

Equipment Type

Trailer

Application

Commercial transport, construction, rental - low-clearance equipment loading
