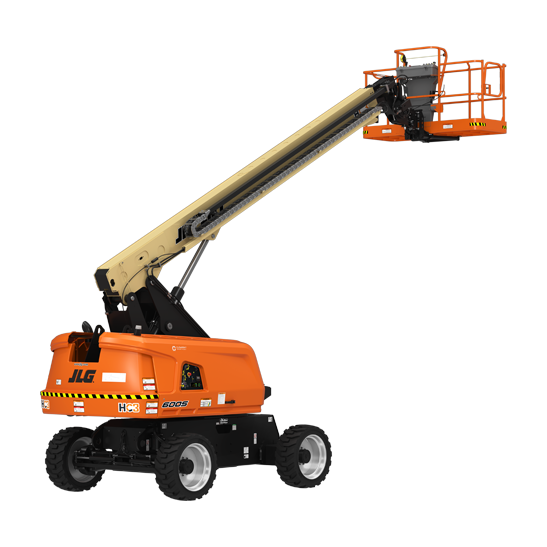

JLG 600S HC3

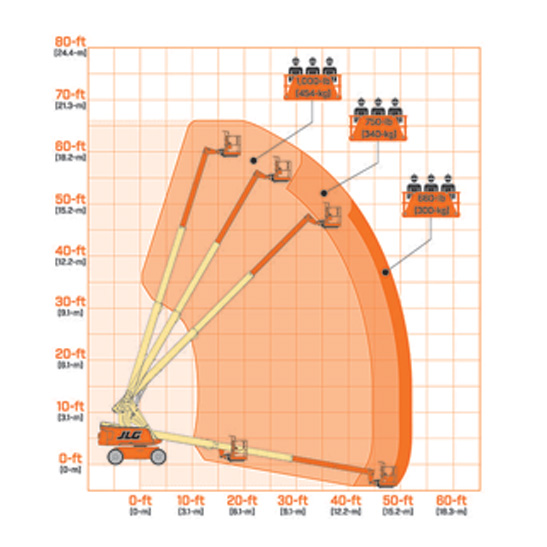

The JLG 600S HC3 is a telescopic boom lift built on the proven 600S platform but tuned for bigger crews. It still reaches a 60 ft platform height and 50 ft of horizontal outreach, but its high-capacity platform holds up to 1000 lb restricted / 660 lb unrestricted, giving room for an extra worker and more material at height. A 48.8 hp Deutz Tier 4 Final diesel engine and 360-degree continuous swing keep the machine productive on tight, busy jobsites. At about 22,900 lbs, it suits electrical, mechanical, and general contractors who need multiple hands working the same elevated task simultaneously.

Get a Quote

JLG 600S HC3 Specifications

Power & Engine

Horsepower (Gross)

48.8 HP

Engine

Deutz D2.9 L4 Diesel, 48.8 hp

Physical Dimensions & Weight

Overall Width

98 in

Length

28 ft 7 in

Operational Performance

Lift Capacity

1,000 lb

Arm Reach

50 ft 2 in

Classification & Options

Specialty

60 ft platform height; 50 ft horizontal outreach; 1000 lb restricted / 660 lb HC3 unrestricted capacity; 360-degree continuous swing; 48.8 hp Deutz Tier 4 Final diesel; zero-calibration load sensing

Lift Configuration

Telescopic Boom

Equipment Type

Boom Lifts - Telescopic

Application

commercial construction, electrical and mechanical contracting, industrial maintenance, warehouse fit-out, multi-trade crew work
