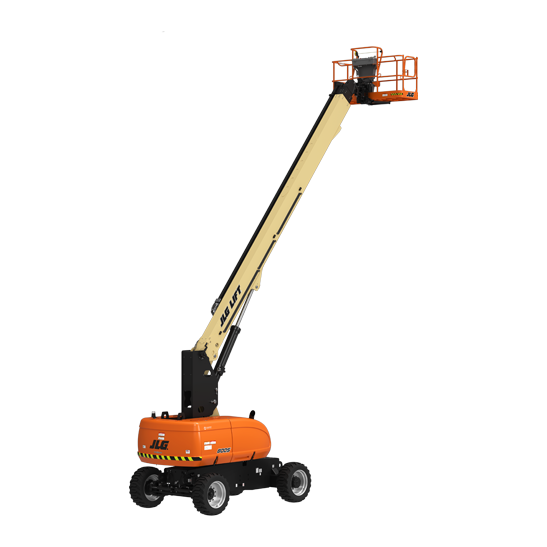

JLG 800S

The JLG 800S is a diesel-powered telescopic boom lift built for jobs that need real height and side reach. It climbs to an 80 ft platform and stretches 71 ft horizontally, with room in the platform for up to three workers and their tools when the load stays within the machine's rated zones. A 360-degree continuous swing and 45% gradeability keep it maneuverable on uneven terrain, and a Ford dual-fuel engine option backs up the standard 67 hp Deutz diesel. Suited for commercial construction, industrial maintenance, warehouse buildouts, and facility upkeep where crews need to move between work points quickly.

Get a Quote

JLG 800S Specifications

Power & Engine

Horsepower (Gross)

67 HP

Engine

Deutz TD 2.9L Tier 4 Final, 67 hp

Physical Dimensions & Weight

Overall Width

98 in

Length

37 ft 3 in

Operational Performance

Lift Capacity

500 lb

Arm Reach

71 ft 0 in

Classification & Options

Specialty

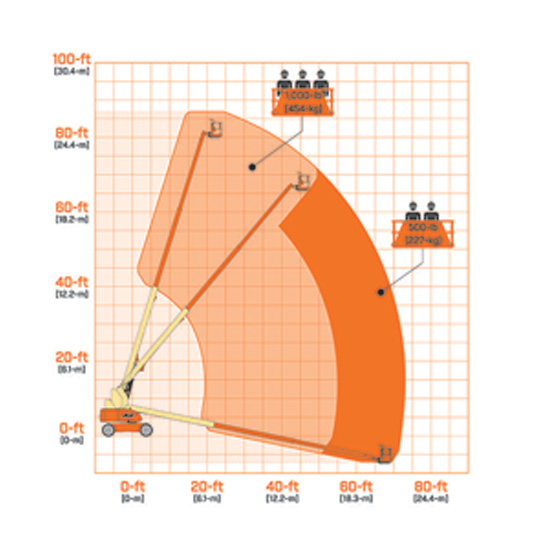

80 ft platform height; 71 ft horizontal outreach; 1,000 lb restricted / 500 lb unrestricted capacity; 360 degree continuous swing; Deutz diesel or Ford dual-fuel power; ClearSky ready

Lift Configuration

Telescopic Boom

Equipment Type

Boom Lifts - Telescopic

Application

commercial construction, industrial plant maintenance, warehouse and distribution center work, electrical and HVAC installation, facility upkeep
