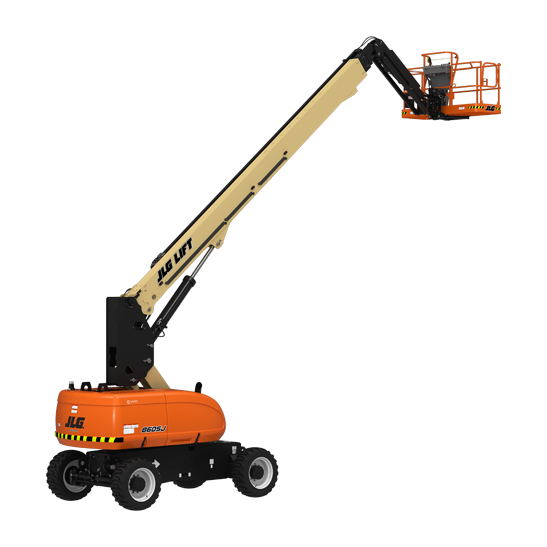

JLG 860SJ

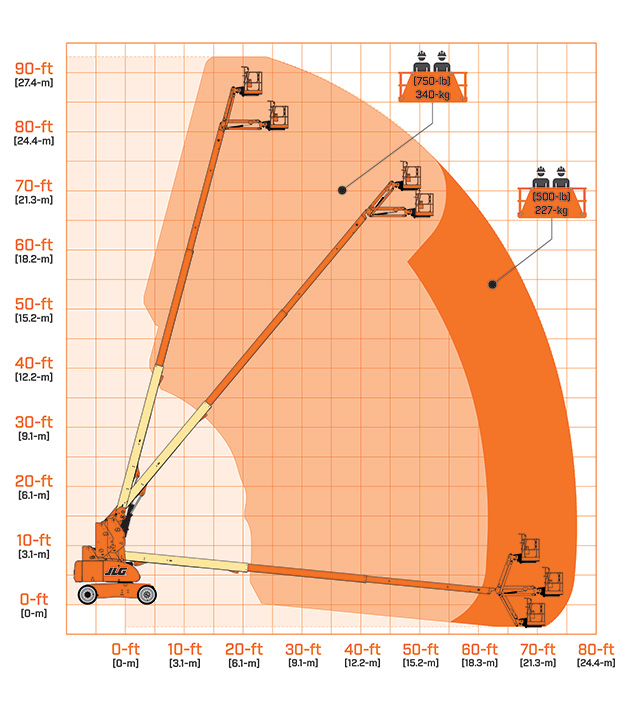

The JLG 860SJ is a telescopic boom lift built for long-reach work, topping out at an 86 ft platform height with 75 ft of horizontal outreach. A 130-degree articulating jib helps position the platform around obstacles, while platform capacity runs up to 750 lb restricted or 500 lb unrestricted for flexible load planning. The standard 67 hp Deutz diesel (or optional 84 hp Ford dual-fuel engine) pairs with 45% gradeability, 360-degree continuous swing, and 11 in of ground clearance for stable travel across job sites. A strong fit for bridge work, high-bay warehouse maintenance, sign and steel installation, and other jobs where height and reach matter more than a tight footprint.

Get a Quote

JLG 860SJ Specifications

Power & Engine

Horsepower (Gross)

67 HP

Engine

Deutz TD 2.9L Tier 4 Final, 67 hp

Physical Dimensions & Weight

Overall Width

98 in

Length

40 ft 0 in

Operational Performance

Lift Capacity

500 lb

Arm Reach

75 ft 0 in

Classification & Options

Specialty

86 ft platform height; 75 ft horizontal outreach; 750 lb restricted / 500 lb unrestricted capacity; 130 degree jib articulation; 360 degree continuous swing; Deutz diesel or Ford dual-fuel power

Lift Configuration

Telescopic Boom

Equipment Type

Boom Lifts - Telescopic

Application

bridge and infrastructure work, high-bay warehouse maintenance, steel and sign installation, industrial construction, utility and telecom work
